Infrastructure networks

Pressure pipe systems for water mains, city networks and project infrastructure: PE100 pipes in straight lengths and coils, U-PVC pressure pipes up to Ø 400 mm, compression fittings for drinking water and pressurised waste water, and PE fittings up to Ø 2000 mm.

Product lines: 6
Brands: PimtaşTuran BorfitGeorg Fischer

6 product lines

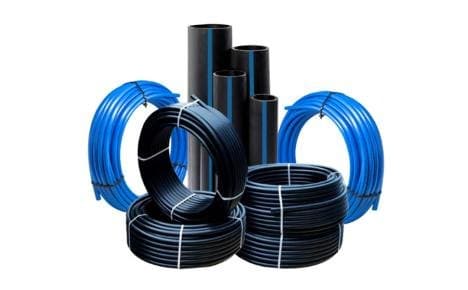

Pimtaş
PE100 pipe and fittings
Polyethylene pressure pipes in straight lengths and 100 m coils, with or without sockets.
Diameter
Ø 20–63 mm
Length
6–12 m · 100 m
Pressure class
PN 6 · 10 · 16 · 20
Standards
ISO 4427-2 · EN 12201-2 · DIN 8074/8075

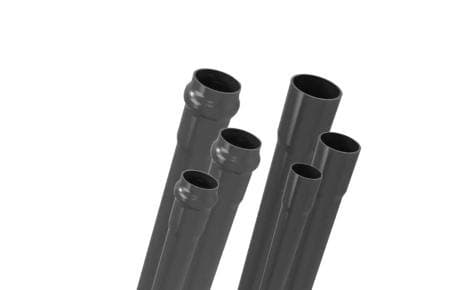

Pimtaş
U-PVC pressure pipe
Pressure pipes up to Ø 400 mm, with socket, plain-end or O-ring joints.
Diameter
Ø 20–400 mm
Length
6 m
Pressure class
PN 6 · 10 · 16
Standards
EN ISO 1452-2 · DIN 8061/8062 · ISO 4422
Pimtaş
Compression fittings
For drinking water and pressurised waste water, above ground and underground.
Diameter
Ø 20–110 mm · ½″–4″
Pressure class
PN 10 · 16
Standards
DIN EN 12201 · ISO 11922-1 · DIN 8074

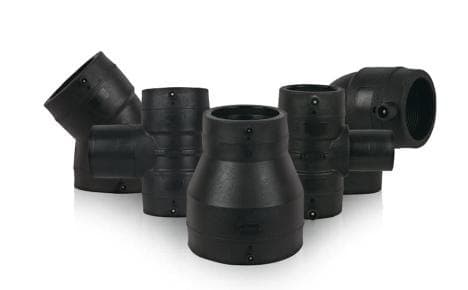

Turan Borfit
PE fittings
Injection-moulded, electrofusion and fabricated PE fittings and kits up to Ø 2000 mm.
Diameter
Ø 20–2000 mm
Pressure class
PN 10 · 16 · 20 · 25
Standards
EN 1555 · EN 12201 · ISO 4437

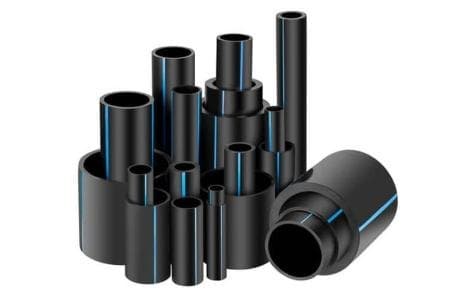

Turan Borfit
PE100 pipe
Polyethylene pressure pipe in lengths and 100 m coils.
Diameter
Ø 20–125 mm
Length
6–12 m · 100 m
Pressure class
PN 10 · 16 · 20 · 25
Standards
EN 1555 · EN 12201 · ISO 4437

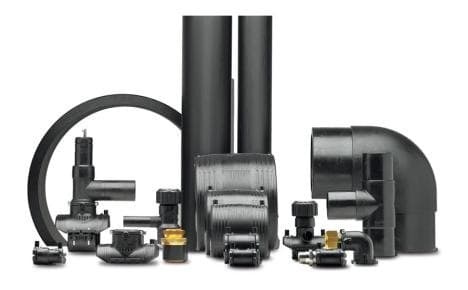

Georg Fischer
PE100
Polyethylene pressure pipe up to Ø 355 mm in SDR 9 and SDR 11.
Diameter
Ø 20–355 mm
Length
6–12.5 m
Wall series
SDR 9 · 11
Standards
EN 12201-2 · ISO 4427:2019
