02 / 08 · Solutions
Drainage and grey water
Drainage for the water that leaves a building: grey water from basins, showers and kitchens, soil stacks and buried sewer lines. Choose from PVC-U pipes, low-noise PP systems rated by sound level, and KG pipes for underground runs.
- Product lines
- 9
9 product lines
- Polo EgyptPolo Egypt
Boroug UPVC
White PVC-U pipes joined with solvent cement, resistant across a pH range of about 2 to 13.
- Diameter
- Ø 25–160 mm
- Length
- 6–12 m
- Material
- PVC-U
- Standards
- DIN 8061 · ISO/R 1183 · ISO/R 527 · DIN 52612
Silenta Premium
Sound-insulated drainage pipes and fittings for buildings, supplied with or without sockets.
- Diameter
- Ø 58–200 mm
- Acoustic performance
- 7 dB(A) @ 2 l/s · EN 14366
- Fire class
- B2 · DIN 4102
- Standards
- DIN 4109 · DIN 4102-B2
Silenta 3A
Socketed low-noise drainage system for building waste water.
- Diameter
- Ø 40–200 mm
- Acoustic performance
- 17 dB(A) @ 4 l/s · EN 14366
- Fire class
- B2 · DIN 4102
- Standards
- DIN EN 1451-1 · DIN 4109 · DIN 4102-B2
POLO-KAL NG
Low-noise drainage with EPDM seals, chemically resistant from pH 2 to 13.
- Diameter
- Ø 32–200 mm
- Acoustic performance
- 18 dB(A) @ 2 l/s · EN 14366
- Fire class
- B2 · DIN 4102
- Standards
- EN 1451-1 · EN ISO 9969 · EN 13501-1
POLO-KAL 3S
Sound-insulated drainage with sockets and built-in EPDM seals.
- Diameter
- Ø 75–160 mm
- Acoustic performance
- 12 dB(A) @ 4 l/s · DIN 4109
- Fire class
- D-s2 · B2
- Standards
- DIN EN 12056 · EN 14366 · DIN 4109
Aqua Silent PP
Socketed low-noise PP drainage for building waste water.
- Diameter
- Ø 50–160 mm
- Acoustic performance
- 22 dB(A) @ 4 l/s
- Standards
- EN ISO 15874 · DIN 8077 · DIN 8078 · ASTM F2389
Skolan Safe
Mineral-filled PP drainage with high sound insulation, chemically resistant from pH 2 to 12.
- Diameter
- Ø 58–200 mm
- Acoustic performance
- 17 dB(A) @ 4 l/s
- Fire class
- B2 · DIN 4102
- Standards
- DIN EN 1451-1 · DIN EN 12056 · DIN 1986-100
HT Safe
Mineral-filled PP drainage pipes for waste water inside buildings.
- Diameter
- Ø 32–160 mm
- Acoustic performance
- 21 dB(A) @ 4 l/s
- Fire class
- B1
- Standards
- DIN EN 1451-1 · DIN 19560-10 · DIN 8078

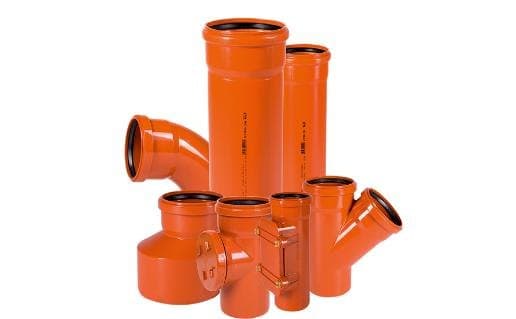

KG-System
Co-extruded PVC-U sewer pipes for buried drainage, in stiffness classes SN 4, 8 and 10.
- Diameter
- Ø 110–500 mm
- Material
- PVC-U
- Ring stiffness
- SN 4 · 8 · 10
- Standards
- DIN EN 13476-2 · DIN EN 1401-1
Need help choosing?
Our sales and technical teams advise on selection, quantities and delivery for projects of every size.
